EV Charger Installation in McLean, VA
Home EV charging work centers on a code-sized dedicated 240V circuit and the capacity available at the electrical panel. Planning covers a hardwired or receptacle-fed charger, cable reach, placement, and permit and inspection requirements.
- Licensed & insured
- Family-owned since 1996
Field briefing / McLean, VA
Project briefing
Jurisdiction confirmed by property address
- Project
- EV Charger Installation
- Identify the primary vehicle bay and future charging loads before selecting one equipment location or committing panel capacity.
- Permit path
- Fairfax County Land Development Services
- Final jurisdiction is confirmed from the property address.
- Local condition
- McLean
- Langley, Chesterbrook, and McLean Hamlet include varied layouts, so a panel may be near an attached garage, separated by finished space, or remote from exterior parking at a particular property. We measure the actual route and review panel capacity before setting output. For work that adds a covered charging circuit or outlet, Fairfax County electrical and EVCS guidance provides the permit path.
Before your estimate
Start a McLean charger estimate with the panel-to-parking route
Identify the supply before choosing a mounting point
For a McLean property served by Fairfax County, use the County’s residential electrical and EV charging permit guidance. Tell us whether the proposed parking area is attached to the house, in a detached garage or reached across a driveway. The nearest panel may be a subpanel whose feeder capacity is the relevant limit. Send photos of accessible closed equipment and any existing circuit records; an empty breaker space does not prove that charging capacity is available.
Separate distance from access difficulty
Two routes of the same length can need very different work. One may have accessible framing; another may cross finished rooms, paving or landscaping. Show likely access points and explain which surfaces can be opened and who would restore them. If the route is underground, utility-location requirements, property boundaries and excavation responsibilities must be addressed before digging. A detached building may introduce supply and grounding questions that are not captured by a per-foot cable allowance.
Document one-car and two-car needs
List each vehicle’s daily travel, usual parking window and charge-port location. If two cars need charging, compare their combined routine before assuming two maximum-output circuits. Compatible load management can be considered as a designed system; it is not an informal way to share any available circuit. The proposal should identify the selected equipment, commissioned limits, permits, route, protection and finish work. A longer route or utility-dependent change can affect timing, so staff review the scope before confirming the visit.
What to include in your request
- Closed main-panel and garage-subpanel photos if accessible
- Sketch or photos of the proposed route and affected surfaces
- Vehicle models, daily use and one-car or two-car charging needs
- Known access, excavation, property and restoration constraints
Photograph only accessible equipment with covers in place. The office reviews your request and confirms the next step; sending it does not book an appointment.
Estimates are free for every service. Scheduled estimate visits and written project prices are free. Diagnostic and repair work is a separately priced service.
Our quoted electrical installations include a five-year workmanship warranty from completion. Parts and equipment carry their manufacturer warranties.
Official local requirements
Scope first
What this project involves
Charging output
Choose an output that fits the vehicle, charging habits, circuit size, and available panel capacity.
Connection and placement
Choose hardwired or receptacle-fed equipment and place it indoors or outdoors with practical cable reach.

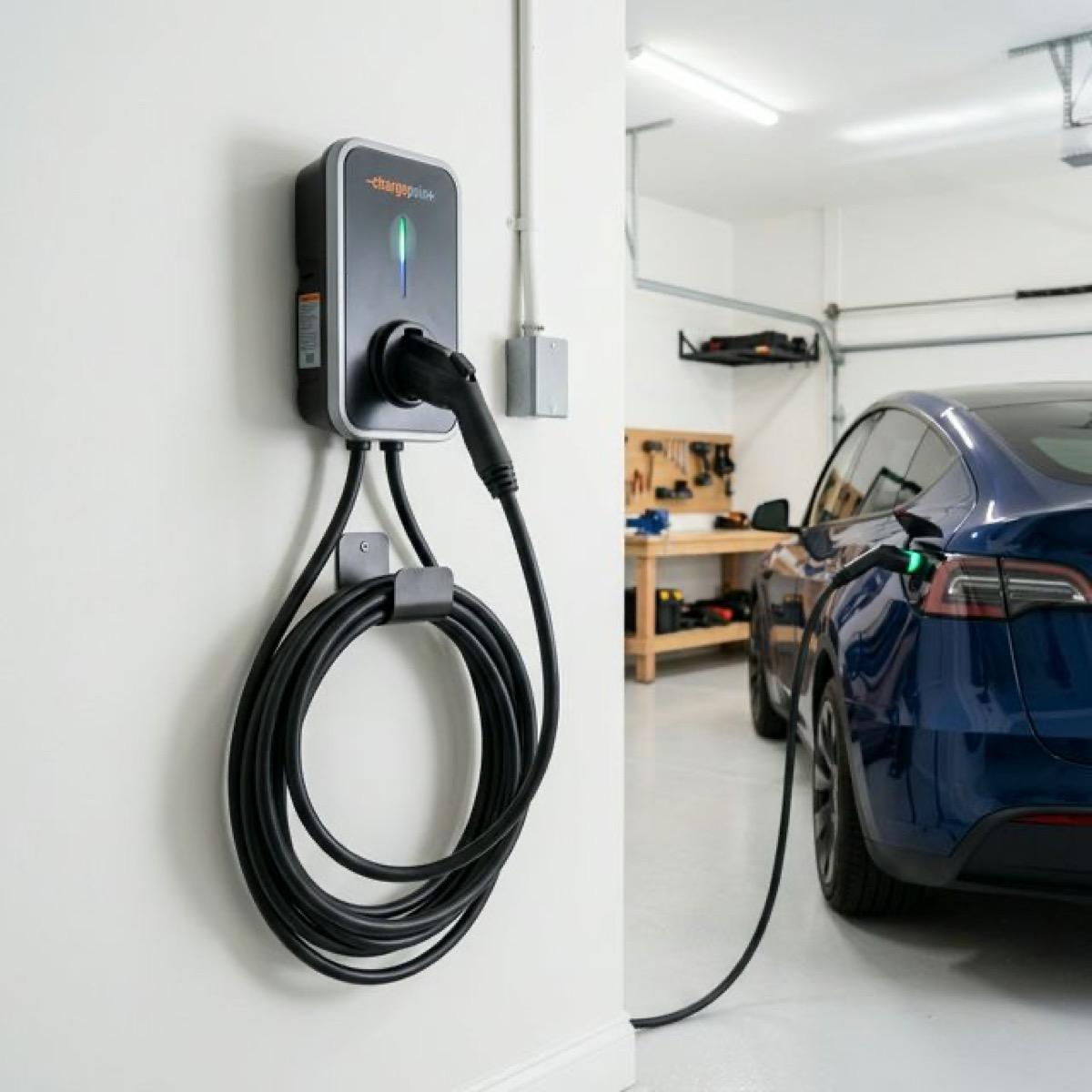

Field view / EV Charger Installation
Representative field view for EV Charger Installation; final scope is confirmed at the property.Address-specific planning
What matters in McLean
A McLean EV-charging circuit should be designed around where the vehicle stays overnight, not simply the nearest wall to the electrical panel. Parking orientation, connector reach, route distance, outdoor exposure, and available service capacity all affect the useful plan.
Langley, Chesterbrook, and McLean Hamlet include varied layouts, so a panel may be near an attached garage, separated by finished space, or remote from exterior parking at a particular property. We measure the actual route and review panel capacity before setting output. For work that adds a covered charging circuit or outlet, Fairfax County electrical and EVCS guidance provides the permit path.
Explore the McLean service areaProject fit / review at the property
- A multi-bay garage where one mount must reach the selected parking position
- An exterior parking installation with a longer route and weather exposure
- A load calculation for EV charging alongside other planned electric equipment
Quote inputs
Scope and cost drivers
Typical published range for this work: $1,200-$3,500 typical; long or detached runs up to $4,500. The written McLean proposal is project-specific.
Included in the defined scope
- Review the charger requirements and desired parking location
- Calculate available panel capacity for the proposed charging load
- Plan and install a dedicated 240V circuit for hardwired or receptacle-fed equipment
- Coordinate the electrical permit and inspection for the installation
What can change scope and cost
- Circuit amperage and charger connection method
- Distance and route from the panel to the parking location
- Available panel capacity and related electrical work
- Indoor or outdoor mounting conditions
Work sequence
From assessment to completion
- 01
Review
Confirm the charger requirements, parking position, cable reach, and connection preference.
- 02
Calculate
Evaluate the panel and calculate whether it can support the charging load.
- 03
Route
Define the dedicated circuit path, mounting location, and permit scope.
- 04
Install and inspect
Install the circuit and connection, test the work, and coordinate the required inspection.
Property-specific answers
Local questions
How is a charger positioned in a McLean multi-bay garage?
We start with the bay used by the EV, its charge-port side, cable length, door and storage clearances, and whether another vehicle may need access. Placement follows those practical reach conditions.
What if a McLean EV circuit has a long route from the panel?
We measure the accessible path, account for finished and exterior sections, and size the wiring for the designed circuit. Route choices and capacity are compared before the estimate is finalized.
Does a garage subpanel make a McLean EV installation straightforward?
Not necessarily. Its feeder, existing loads, circuit spaces, grounding and route need review. Spare spaces alone do not establish spare capacity.
Will a longer route automatically require a panel upgrade?
No. Routing and capacity are separate design questions. The load assessment determines capacity needs; distance and installation method affect the circuit design and project scope.
